Announcing mizer 3.4

release

mizer 3.4 brings pure S3 objects, reconciles species parameters to eliminate silent overwriting, unifies steady-state residual metrics with biomass drift, and makes extension points and defaults more predictable.

Author

Gustav Delius

Published

August 30, 2026

Recent releases of mizer have been driven by a single unifying theme: making mizer’s behaviour more uniform, more consistent, and more predictable.

In mizer 3.1 we introduced second-order numerical accuracy in size and L-stable time steppers. In mizer 3.2 we resolved confusing setter behaviour and made resource setting behave identically to species parameter setting. In mizer 3.3 we renamed the steady-state finders after what each keeps fixed, introduced dynamic stability analysis and model scanning, and unified the AI agent skills with the user guides.

mizer 3.4 continues this work. It cleans up the foundational data structures by transitioning MizerParams and MizerSim from S4 to transparent S3 lists, introduces reconcileSpeciesParams() to protect species parameters from being silently overwritten, aligns the size-resolved steady-state residual with the model’s actual biomass drift, and refines extension hooks and parameter defaults throughout the package.

No more silent overwrites: reconciling species parameters

When you build or modify a mizer model, mizer maintains two views of your species parameters:

  • given_species_params(params): the parameters you explicitly supplied (or function argument defaults).
  • species_params(params): the complete table containing your given values with mizer’s calculated or defaulted values filling in the gaps.

In earlier versions, it was all too easy for these two tables to drift out of step. If code modified the parameter table directly in the slot—such as params@species_params$h[1] <- 50—the new value appeared in species_params(), but given_species_params() knew nothing about it. Even internal functions fell into this trap: scaleModel() (and functions built on it like calibrateBiomass() and matchBiomasses()) rescaled R_max and gamma directly in species_params(), bypassing given_species_params().

The consequence was subtle and frustrating. As soon as you touched any species parameter later on—or even executed a harmless-looking species_params(params) <- species_params(params)—mizer recalculated the species parameters from the old given_species_params(). The hand-edited or rescaled values were silently overwritten and reverted to their previous numbers without any warning.

The solution: reconcileSpeciesParams()

mizer 3.4 introduces reconcileSpeciesParams() to eliminate this inconsistency:

params <- reconcileSpeciesParams(params)

reconcileSpeciesParams() inspects the species parameter table, identifies every value that a recalculation would change, and records it among given_species_params() so that it is protected against future recalculations. It repeats this check iteratively until the species parameters form a fixed point under recalculation—ensuring that downstream parameters derived from your hand-set values are also caught and preserved.

Crucially, reconcileSpeciesParams() leaves the model itself, its parameters, and all rate arrays completely untouched. It only updates the provenance record so that subsequent parameter updates behave predictably:

# Modify h directly in the table
params$species_params$h[1] <- 50

# Reconcile so the change is protected
params <- reconcileSpeciesParams(params)
#> The species parameter `h` holds a value that a recalculation would not
#> reproduce. I have recorded it among the given species parameters so that it
#> is not overwritten.

# Subsequent recalculations now preserve your value
species_params(params) <- species_params(params)
species_params(params)$h[1]
#> [1] 50

Best of all, readParams() now calls reconcileSpeciesParams() automatically when loading saved models. Saved models created with earlier mizer versions or built with direct slot modifications will no longer suffer silent parameter reversions when you work with them.

Alongside this, companion improvements make parameter management more robust:

  • scaleModel() and calibrateBiomass() now record rescaled R_max and gamma directly into given_species_params() at the time of scaling.
  • Removing a column via species_params(params)$col <- NULL or given_species_params(params)$col <- NULL now cleanly drops custom columns from the model or resets standard parameters back to their calculated defaults.

MizerParams and MizerSim are ordinary S3 lists

The headline architectural change in mizer 3.4 is one you will barely feel: MizerParams and MizerSim are now pure S3 objects (named lists with a class attribute) rather than S4 objects.

Full backwards compatibility

Every model result is unchanged, and slot access using @ and @<- continues to work transparently via custom S3 @ operator methods:

params@w           # works exactly as before
params@w <- new_w  # works exactly as before

Legacy S4 objects saved with earlier versions of mizer are automatically converted to S3 lists upon access or when loaded with readParams() and readSim().

Standard list operations and cleaner extensions

Because models are now standard R lists, standard list operators work directly:

params$species_params    # standard list access
params[["w"]]            # standard subsetting
names(params)            # lists all slot names

This transition also vastly simplifies extension packages. Previously, extensions had to create dynamic S4 marker classes at runtime using setClass() and manipulate R’s search path. In mizer 3.4, an extension simply prepends its class name to the S3 class vector (for example, c("mizerShelf", "MizerParams")). Chaining multiple extensions together is now completely natural, and saveParams() / saveSim() preserve the full S3 class vector when serialising.

A unified, size-resolved steady-state residual

In mizer 3.3 we added isSteady() and getSteadyResidual() to check whether a model is at its steady state. In mizer 3.4, we have made the residual metric completely consistent with the rest of mizer’s steady-state reporting.

getSteadyResidual() now calculates, for each size class, its contribution to the relative rate of change of its species’ biomass, \((dB_i/dt) / B_i\) in 1/year:

params_unsteady <- matchGrowth(NS_params)
#> `matchGrowth()` has rescaled the model and so moved it off its steady state.
#> Run `tuneSteadyState()` to settle it again. You can check with
#> `getSteadyResidual()`.

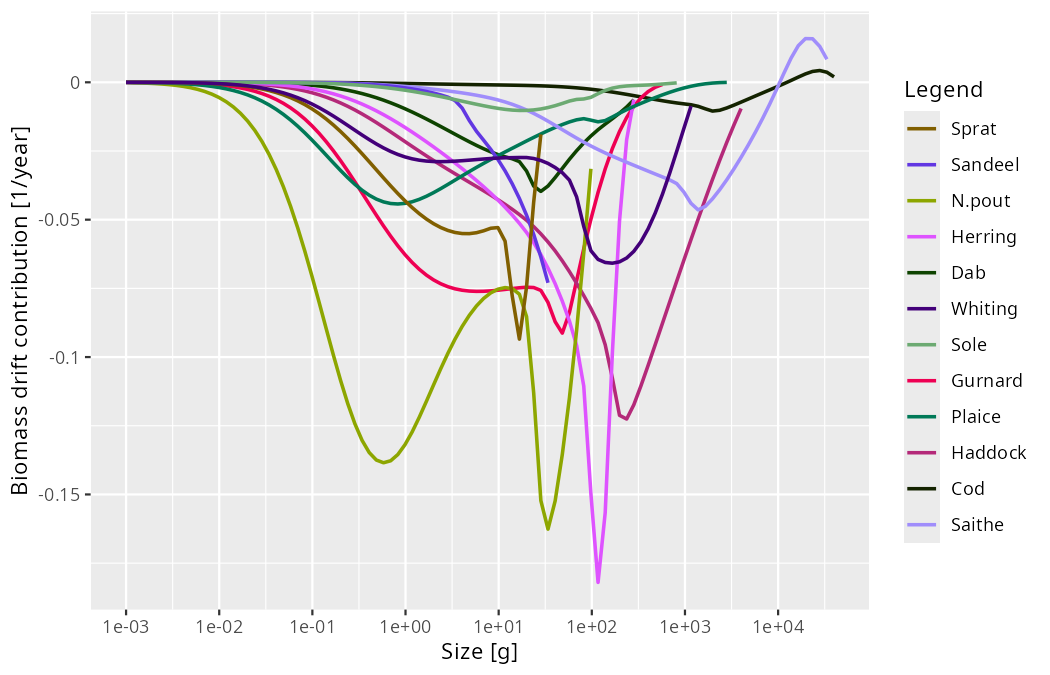

plot(getSteadyResidual(params_unsteady))

Under this definition, rowSums(getSteadyResidual(params)) is identically equal to the species biomass drift judged by isSteady(), reported in summary(params), and checked by project(check_steady = TRUE):

rowSums(getSteadyResidual(params_unsteady))["N.pout"]
#>    N.pout
#> -4.580819
Steady state:
    biomass drift:  4.6 /year   (not at steady state, largest in N.pout - run tuneSteadyState())

The residual array therefore tells you where in the size spectrum a model is gaining or losing biomass in the exact same currency mizer uses to decide whether it is settled. Because weighting by biomass naturally scales with density, every size class is reported without needing arbitrary density cutoffs. (The scale-free per-capita rate \((dN/dt)/N\) remains available via measure = "per_capita").

Other steady-state refinements in 3.4 include:

  • Separation of other components: Components registered via setComponent() are now evaluated and reported separately via attr(getSteadyResidual(params), "other") and on their own lines in summary(), rather than being conflated with fish biomass drift.
  • Trace density cutoff: In projectUntilSettled(), size classes holding less than a \(10^{-8}\) share of species biomass (biomass_share_cutoff = 1e-8) no longer prevent convergence when an exponential decay tail lingers above the maximum growth size.

Cleaner extension hooks and predictable defaults

mizer 3.4 brings several refinements to extension hooks and parameter defaults:

other_mort() and other_encounter()

Previously, adding an extra mortality term (like starvation or senescence) or an extra encounter contribution required registering a dummy component with setComponent(), complete with dummy dynamics and initial values. mizer 3.4 introduces clean accessors:

other_mort(params)[["starvation"]] <- "starvMort"
other_encounter(params)[["scavenging"]] <- "scavengingEncounter"

These functions receive the simulation time t and are integrated into getMort() and getEncounter() without interfering with model components.

Reference-state defaults for gamma and f0

get_gamma_default() and get_f0_default() are designed to calculate baseline search volume parameters against a standard power-law reference resource. In earlier versions, extension encounter modifiers and additive encounter contributions could leak into this calculation. On models where extensions modulated encounter (such as temperature multipliers in therMizer), this caused gamma to double repeatedly on each rebuild.

In mizer 3.4, get_gamma_default() and get_f0_default() always evaluate against mizer’s clean reference state using mizerEncounter(), making parameter defaults stable, reproducible, and immune to extension feedback loops.

Informative weight-length defaults

When species parameters omit allometric parameters a and b, mizer defaults to \(a = 0.01\text{ g/cm}^3\) and \(b = 3\). In mizer 3.4, mizer announces these defaults when building a model.

Furthermore, if fishing gear selectivity is defined in terms of length (e.g. sigmoid_length or knife_edge_length), setFishing() issues an explicit notification at info_level = 1 if a or b were defaulted:

ℹ The gear selectivity for Cod is set by length, but `a` and `b` were not
  supplied, so the conversion to weight used mizer's defaults (a = 0.01, b = 3).
  The selectivity therefore sits at weights that are unlikely to be the ones you
  intend. Supply the weight-length parameters in the species parameters.

Because length-based selectivity curves convert lengths to weights via \(w = a l^b\), missing allometry shifts the selectivity curve along the weight axis and alters fishing mortality. This alert ensures you catch misplaced selectivity curves before running simulations.

Summaries and plots

  • getMeanLength(): Calculates the mean length of the community or species, the natural counterpart to getMeanWeight().

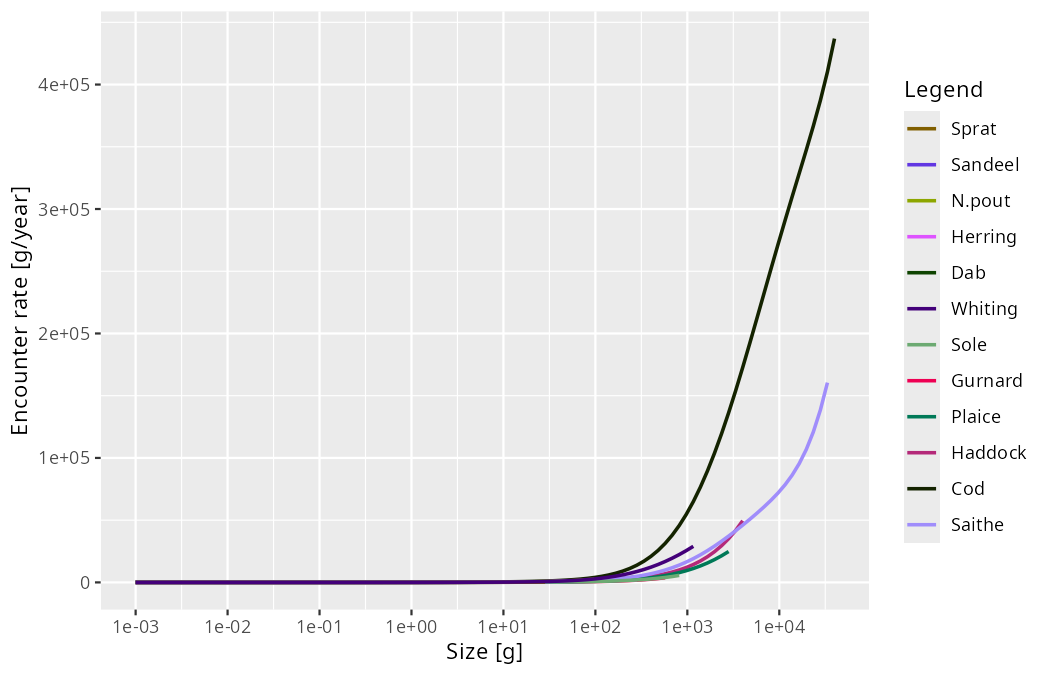

  • Array summary() covers actual species size ranges: summary() on rate arrays (like encounter rates or feeding levels) now covers each species’ size range from w_min to w_max, matching what plot() displays rather than summarising unpopulated grid cells.

  • Descriptive plot data: plotSpectra(params, return_data = TRUE) now returns descriptive column names such as Biomass density or Number density [1/g] rather than the generic placeholder value.

Upgrading to mizer 3.4

To install mizer 3.4 from CRAN:

Or install the development version from GitHub:

pak::pak("sizespectrum/mizer")

Existing models saved with earlier versions will load seamlessly with readParams() and readSim() and will be upgraded to S3 objects and reconciled automatically.

For complete details on upgrading existing code and extension packages, consult the Upgrading mizer guide. As always, if you encounter any issues or have questions, please reach out on GitHub Issues.
